Belisha Beacon Accessories

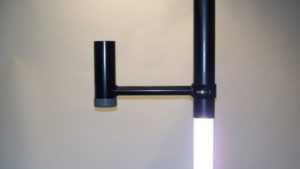

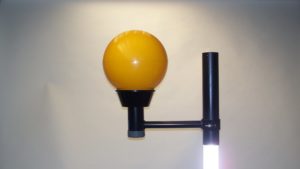

Belisha Beacon Brackets
Designed to clamp onto standard columns for the easy installation of Belisha Beacons requiring greater visibility, achievable by the specified length of out reach. Manufactured from mild steel and hot dipped galvanised to BS EN ISO 1461 as standard with M10 Stainless Steel fittings. Supplied with 1no black plastic cap.
| Part No | Shaft Diameter | Out Reach | Tube Diameter | Tube Height |
|---|---|---|---|---|
| BB1 | 76 | 350 | 76 | 220 |
| BB2 | 89 | 350 | 76 | 220 |
| BB3 | 114 | 350 | 76 | 220 |
| BB4 | 140 | 350 | 76 | 220 |

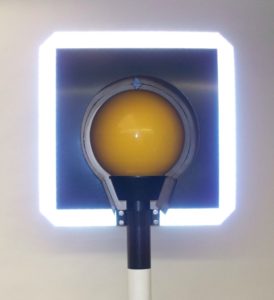

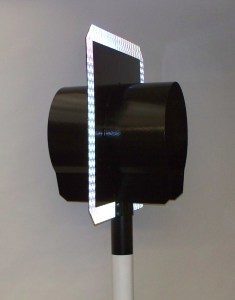

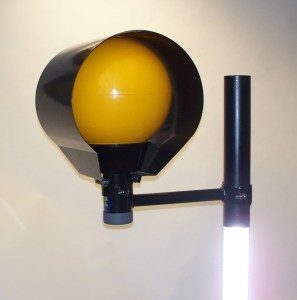

Belisha Beacon Courtesy Shields
To compliment the Fisher & Company designed Gallery and UV Stabilised Globe we manufacture courtesy shield tubes and panels. Made from a combination of Black HDPE with Galvanised Steel clamp brackets to keep the polythene stiff and in the correct shape. Clamp bracket are finished with a Black Polyester Powder Coat, available in two types – Courtesy Panel 550mm² or Courtesy Tube 320mm long. Will fit most Belisha Beacons with saddle clamp provided.
Optional extras;
Stainless Steel
Galvanised Steel
Powder Coated to any RAL or BS colour
| Part No. | Description | Height | Width | Length | |
|---|---|---|---|---|---|
| CS-HDPE | Courtesy Shield – Mild Steel Clamp Brackets, Powder Coated Black with HDPE Shroud (Supplied as Standard) | – | – | 320 | |
| CS-SS | Stainless Steel Courtesy Shield Powder Coated Black | – | – | 320 | |
| CS-GS | Galvanised Mild Steel Courtesy Shield Powder Coated Black | – | – | 320 | |
| CP-SS-B |
| 550 | 550 | – | |
| CP-GS-B | Galvanised Mild Steel Courtesy Panel (Halo) Powder Coated Black with Reflective White Border | 550 | 550 | – | |
| CPS-SS-B | Stainless Steel Courtesy Shield/Panel Combi Powder Coated Black with Reflective White Border | 550 | 550 | 320 | |
| CPS-GS-B | Galvanised Mild Steel Courtesy Shield/Panel Combi Powder Coated Black with White Reflective Border | 550 | 550 | 320 |

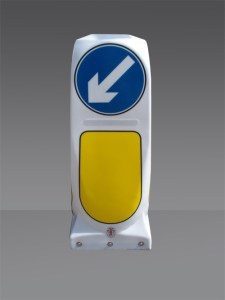

Refuge Island (Keep Left) Bollard
Part No: RIB/GLO/LED
Durable and flexible, this bollard returns to it’s standard shape after collisions with little or no residual deformities or creasing as a result of the impact. Boasting an enhanced surface finish, the bollard prevents the onset and staining of dust and dirt and allows for an easy-clean smooth exterior. A 3w LED Baselight illuminates the bollard during night hours and on dull days.
Supplied with root section with integrated light system, and stainless steel fixings.

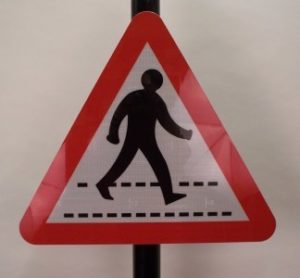

Pedestrian Crossing Sign
Part No: PCS600
Introducing our new Pedestrian Crossing Sign giving motorists advanced warning of Pedestrian Crossings. Fits 76mmø columns and supplied with 2 anti-rotation clips.
| Part No. | Height | Width |
|---|---|---|
| PCS600 | 600 | 679 |
To request a Data Sheet please email info@fisherandcompany.co.uk
Manufactured in Somerset, UK
